About our Belting

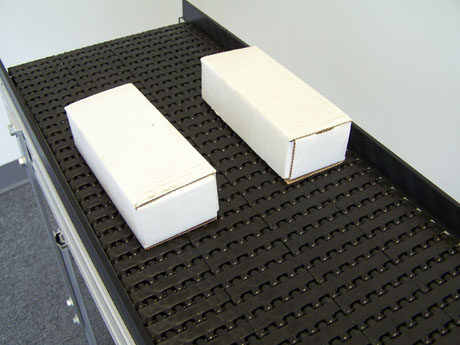

Our conveyors cost less because we design and manufacture our own proprietary "Ball & Bar" Smooth Top Belting. This simpler and safer belting is comprised of multiple polymer links that are releasably joined to one another to act like a fuse in the event of an overloading jam. The modular belting simplifies construction and allows us to build any size belt with the same components. The belt has a smooth surface that improves corner turning while reducing scuffing when sliding under items. Sold in standard widths from 6" - 24". Other sizes quoted per request. (See our Belt Pricing Page) |
Top advantages of "Ball & Bar™" smooth top belting:
- Sprocket drive belt eliminates tensioning and tracking devices to produce a no-maintenance system
- Smooth top belting easily slides under products for turning and stopping applications
- Damaged sections can be replaced instead of needing to replace the entire belt
- Self-lubricating belt does not create dust, ideal for clean room operation
- Modular contructed belting resist cutting and gouging that normally destroys cloth belting
"Ball & Bar™" belting uses up to 80% less power to operate than conventional belt systems.
|
Conveyor Width by Belt Size |
|
Belt Width |
6" |
9" |
12" |
15" |
18" |
21" |
24" |
|
Overall Section Width |
7.5" |
10.5" |
13.5" |
16.5" |
19.5" |
22.5" |
25.5" |
|
Stand Base Width |
11" |
14" |
17" |
20" |
23" |
26" |
29" |
|
